Produces Lightweight, Durable Parts
Supports Complex Geometries
Excellent Surface Finish & Custom Material Options

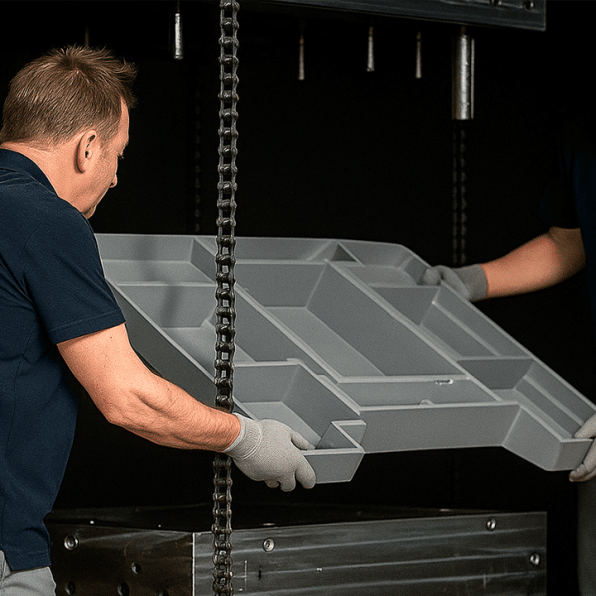

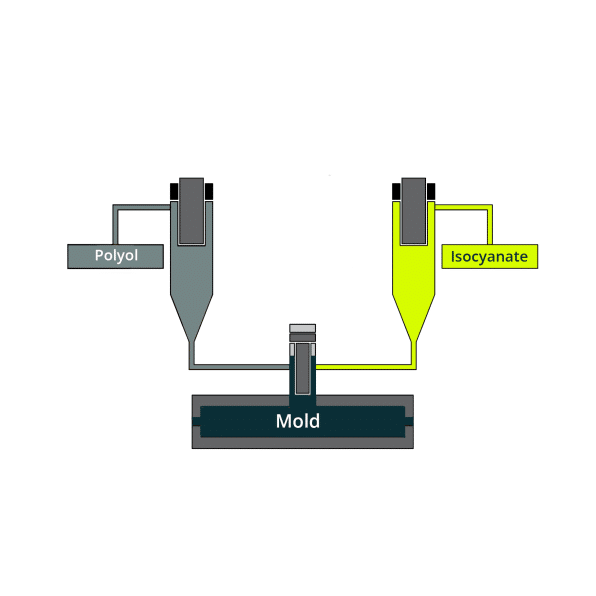

Reaction Injection Molding (RIM) produces durable plastic parts by mixing two liquid reactive materials – typically polyurethane – right before they are injected into a mold. Unlike traditional injection molding, the material chemically reacts and cures inside the mold, forming a thermoset part rather than a melted-and-cooled thermoplastic.
RIM is especially useful for producing large, lightweight and high-strength components with complex shapes and a high-quality surface finish. Because it runs at lower pressures than standard injection molding, it often allows for lower-cost tooling. It’s commonly used in industries like automotive, medical and industrial equipment.
Reaction Injection Molding (RIM) makes it possible to produce large, lightweight and highly durable plastic parts with complex shapes and integrated design features. Because the material starts as a low-viscosity liquid, it can easily fill detailed molds, enabling strong components with smooth surface finishes and reduced need for assembly.
RIM also makes cost-effective production possible for medium-volume runs. That’s because it uses lower-pressure tooling compared to traditional injection molding. This allows manufacturers to create high-performance thermoset parts while keeping tooling costs and lead times manageable.
RIM enables the production of large, lightweight parts that would be too difficult or costly to make using traditional injection molding.
Because it uses low-pressure injection, RIM typically requires less expensive tooling than high-pressure thermoplastic molding.
The process supports complex geometries and integrated features, reducing the need for multi-part assemblies.
RIM produces strong, durable thermoset components with excellent impact and chemical resistance.
RIM offers good surface finish quality, making it suitable for both structural and cosmetic applications.
RIM is often faster and more cost-effective than machining or composite layup for medium-volume part production.
RIM materials are typically thermosets, meaning parts cannot be re-melted or recycled like thermoplastics.
The process may not achieve the same tight dimensional tolerances as high-pressure injection molding for small precision parts.
RIM is generally less suitable for very high-volume production compared to conventional thermoplastic injection molding.
Partner with Experts Who Get It Right the First Time
Every project is reviewed by a seasoned manufacturing engineer to optimize part design, material selection, and tooling strategy — ensuring smarter decisions before steel is cut and production begins.

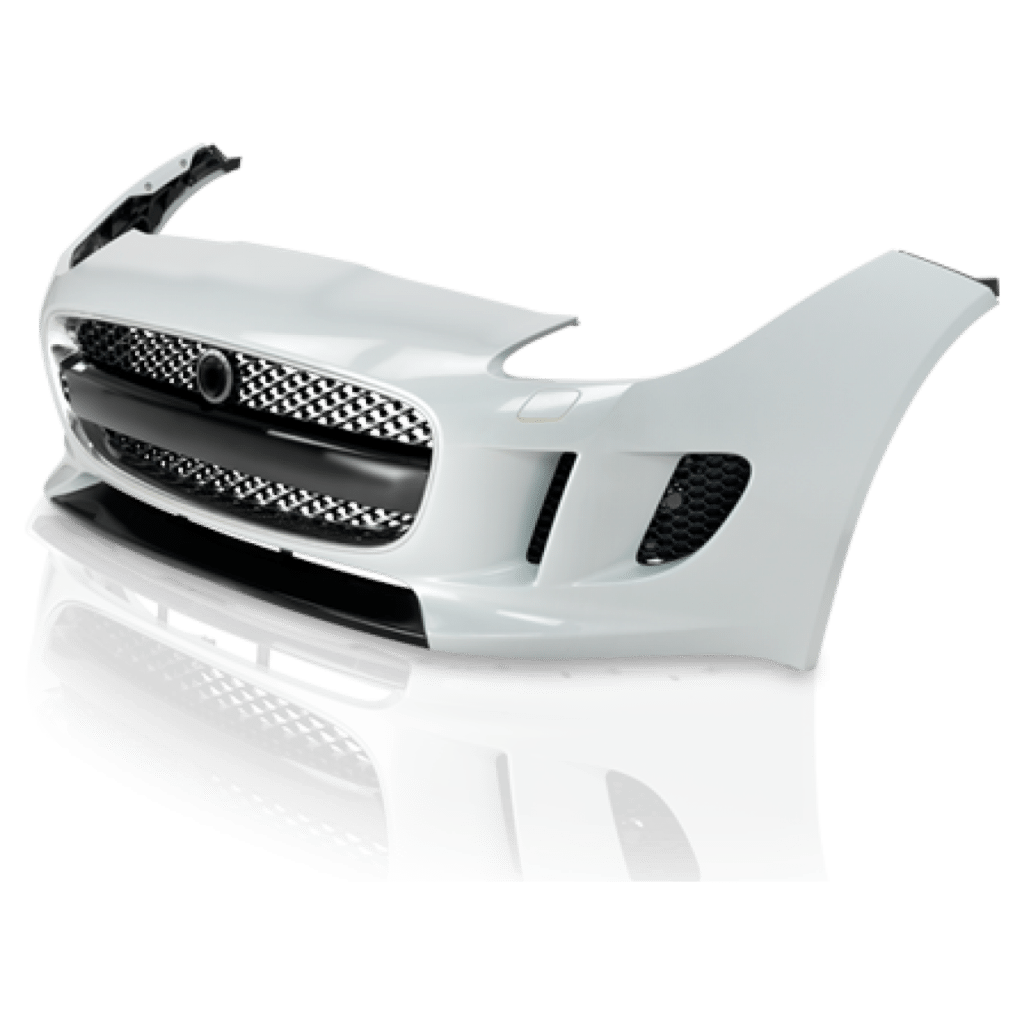

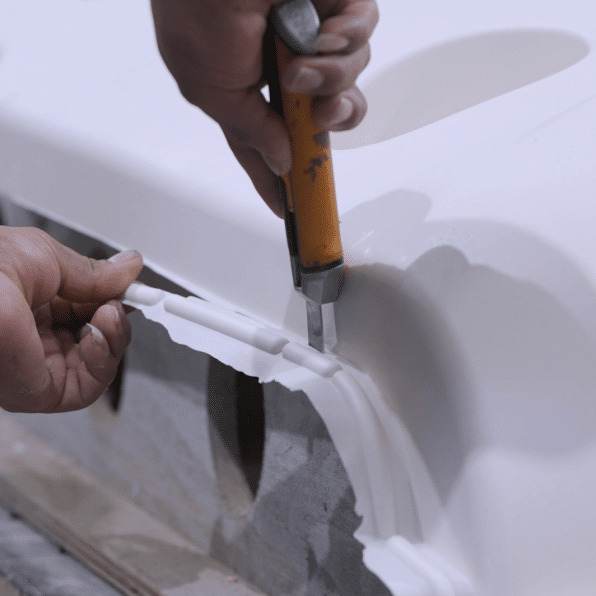

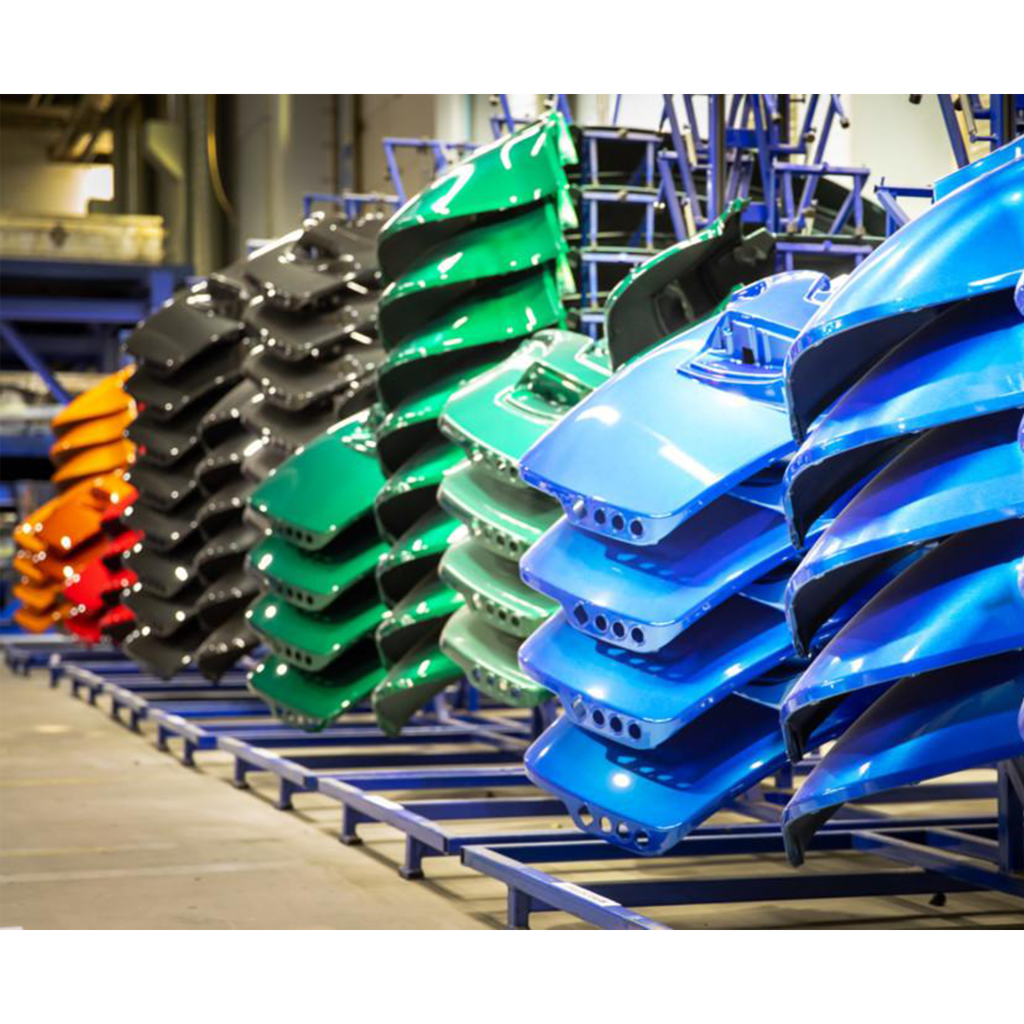

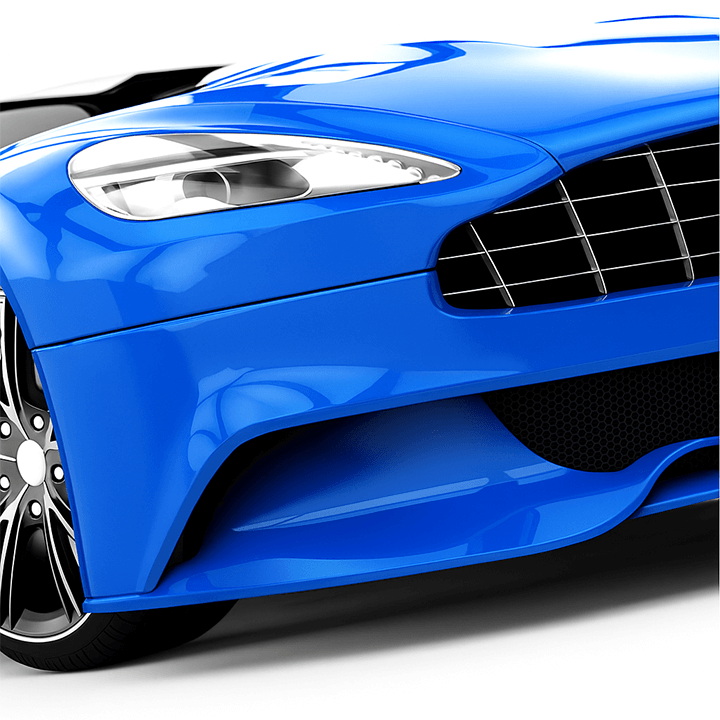

Reaction Injection Molding is commonly used to produce large, lightweight, and durable parts in industries such as automotive, where it’s ideal for components like bumpers, body panels, and interior structural elements. Its ability to create strong thermoset parts with complex shapes makes it well-suited for applications that require both performance and design flexibility.

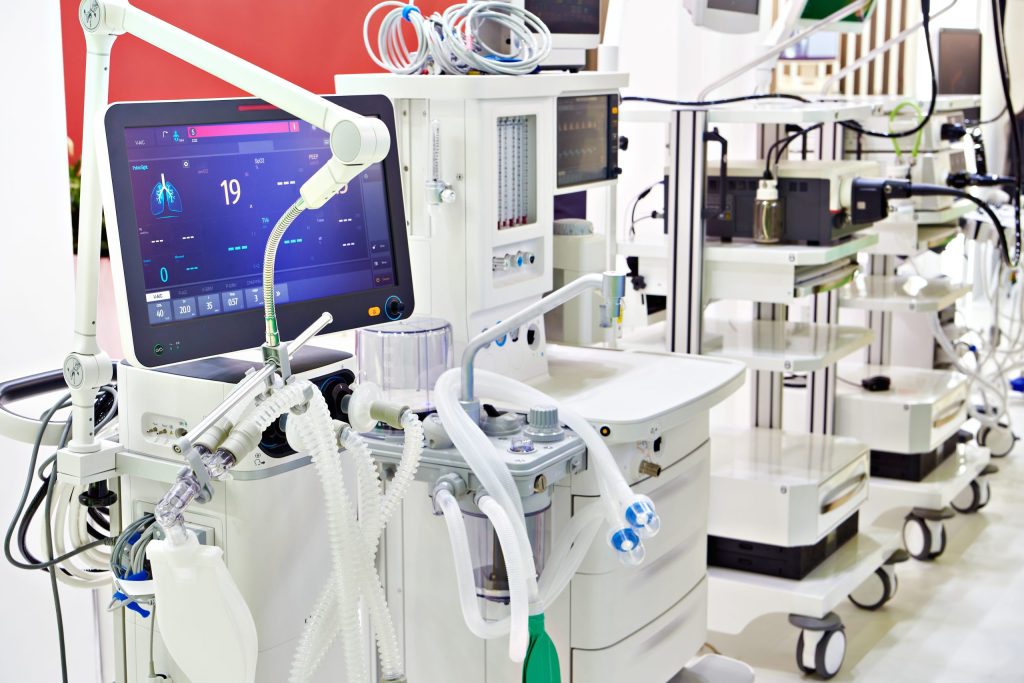

It is also widely applied in industrial equipment, medical housings and electronics enclosures, where impact resistance, smooth surface finish and medium-volume cost efficiency are important. Because the process supports integrated features and lower-cost tooling, it is often chosen for specialized production runs that fall between prototyping and high-volume injection molding.
Injection Molding Done with Expertise — Not Just Automation
Fast quoting is just the beginning. At Fathom, you get real engineering insight, proactive DFM guidance, and a streamlined path from prototype to full production — all backed by hands-on manufacturing experience.
It’s a molding process where two liquid reactive materials are mixed and injected into a mold, where they chemically cure into a solid part.
Traditional injection molding melts and cools thermoplastic material inside the mold to form parts. RIM uses liquid thermoset systems that cure through a chemical reaction.
RIM is ideal for large, lightweight, durable parts with complex shapes and integrated features.
Polyurethane is most common, along with materials like polyurea and epoxy-based systems.
RIM is typically better for low-to-medium volume production rather than very high-volume mass manufacturing.
Because it operates at lower pressures, RIM can use less expensive mold materials than high-pressure injection molding.
RIM is widely used in automotive, industrial equipment, medical and electronics manufacturing.
Yes, RIM can produce smooth cosmetic surfaces suitable for visible or customer-facing components.
RIM parts are usually thermosets, meaning they cannot be remelted and recycled like thermoplastics.
