Stronger, More Reliable Part Integration
Enhanced Product Design Options
Reliable Electrical and Mechanical Integration
Insert injection molding is the process of forming a plastic part around a different type of material. This is typically done with simple metal objects like a threaded rod. However, this process can be used to place a wide variety of other elements into injection-molded parts, including other plastic parts, threaded bushings, electrical connectors, magnets and RFID tags.
Insert molding is an excellent way to replace metal parts with lighter-weight plastic versions that are just as strong. Threaded injection molding inserts enable them to be attached to other components without cracking or damaging the plastic.
Compared to traditional assembly methods such as press-fitting, bonding, or fastening after molding, insert molding integrates components during the molding process itself. This eliminates secondary operations, improves alignment accuracy, and creates a stronger, more reliable bond between materials than post-mold insertion or adhesive-based assembly methods.
With heat staking, the plastic adjacent to the hole may not fully encapsulate the insert, causing it to not be fully anchored to the plastic. With insert molding, the molten plastic flows around the insert, fully anchoring it for maximum holding power.

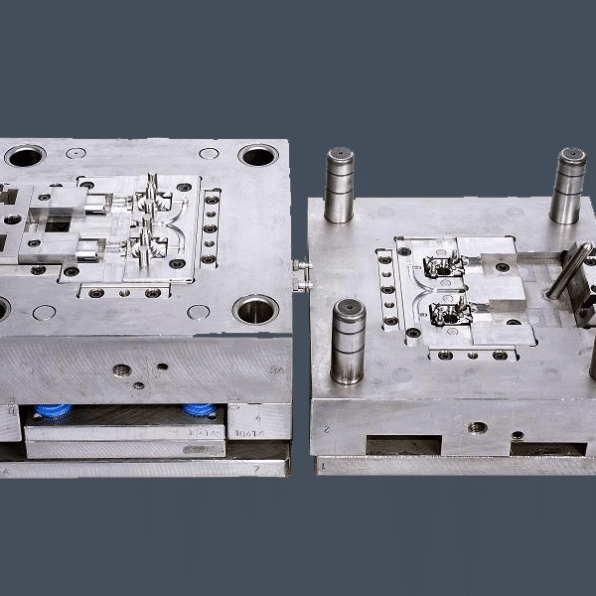

With insert molding, the insert is placed in a pocket of the mold cavity, which holds it in the correct orientation as the plastic is molded around it. With heat staking, there may be some variation in the depth and orientation of the inserts relative to the surface of the part.
For products that need to be serviced repeatedly, threaded injection molding inserts enable components to be easily disassembled and reassembled multiple times without causing degradation of the hole, which can happen when screws are fastened directly into the plastic.

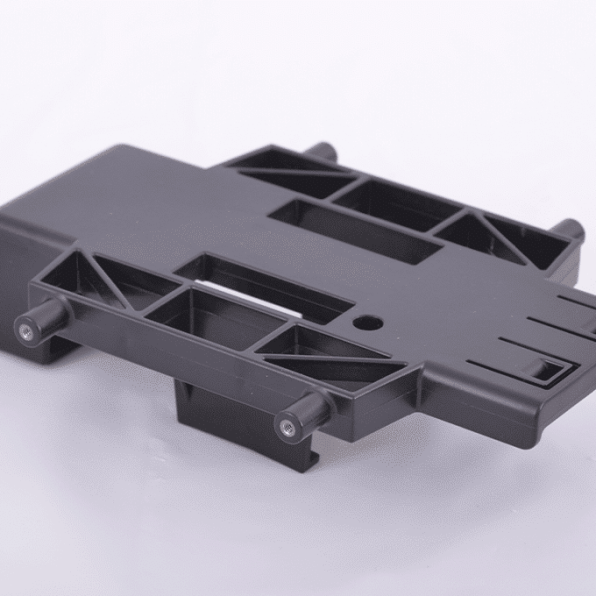

A threaded metal insert provides greater assembly strength between connected parts than other forms of fastening, such as inserting a screw directly into plastic or gluing the parts together.
Positioning inserts and designing the supporting bosses must be done with precision to prevent cosmetic flaws, internal stresses, or structural weaknesses. Fathom’s strong insert molding experience helps ensure both functional performance and manufacturing efficiency. Early design-for-manufacturing (DFM) review helps optimize insert geometry, wall thickness, material compatibility, and mold features before tooling begins, reducing risk and improving overall part performance.
Picking, orienting, and loading inserts into a mold, especially with intricate geometries, often requires custom automation or advanced fixturing. We are skilled in insert-molding automation, which streamlines this process and reduces production risks.
Insert molding may require specialized molds, fixtures, and handling equipment, increasing upfront investment. These additional costs can make the process less economical for low-volume production or frequent design changes.
Partner with Experts Who Get It Right the First Time
Every project is reviewed by a seasoned manufacturing engineer to optimize part design, material selection, and tooling strategy — ensuring smarter decisions before steel is cut and production begins.
Threaded Fasteners

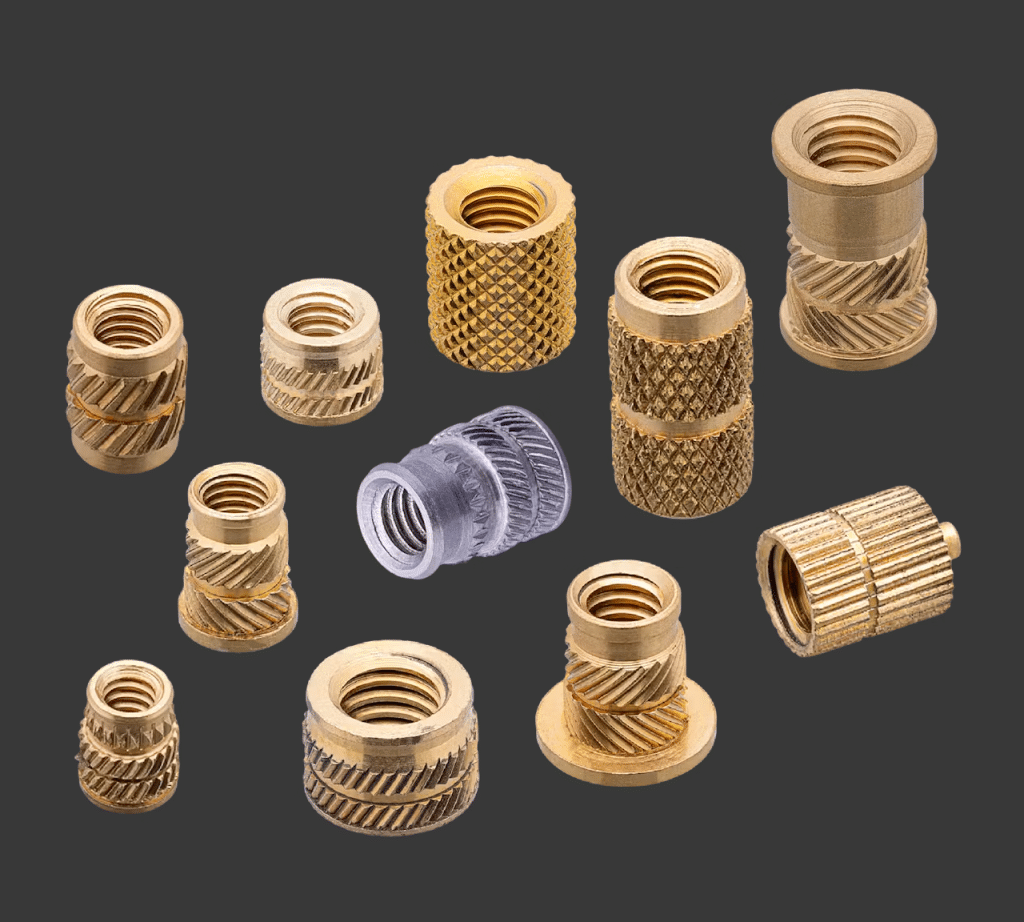

Fasteners such as metal nuts or brass inserts are molded into plastic components to create strong, reusable screw connections.
Electrical Connectors

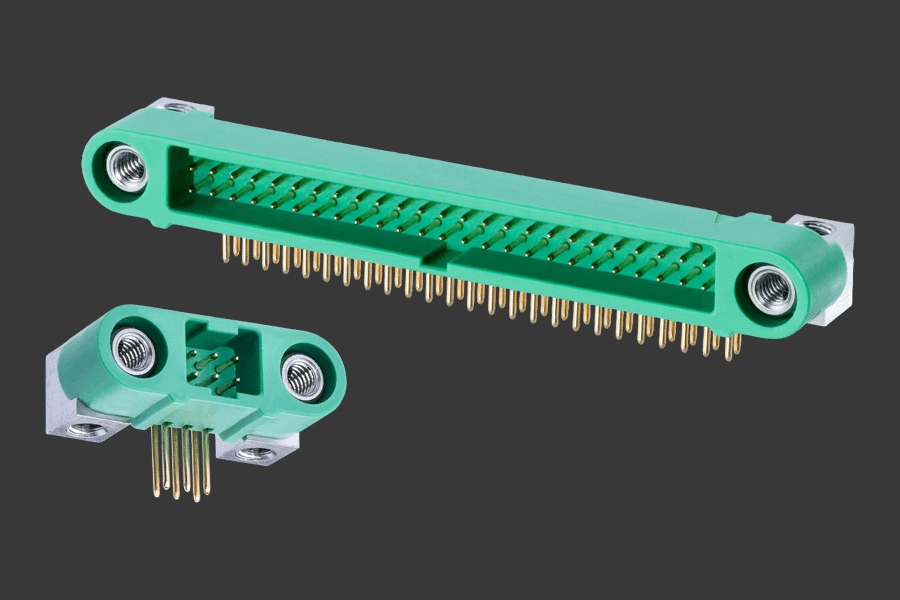

Insert molding is used to integrate metal contacts directly into plastic housings for secure and durable circuitry.
Medical Devices
These devices often rely on insert-molded components to combine metal reinforcement with sterile, high-strength plastic parts.
Automotive Components
Switches, brackets, sensor housings and other automotive components frequently use inserts to improve durability and performance.
Consumer Electronics
Embedding connectors, switches, and reinforcement features within compact plastic enclosures is possible with insert molding.
Handheld Tools and Equipment
Metal inserts can be incorporated to enhance grip strength, load-bearing capability, and product longevity.

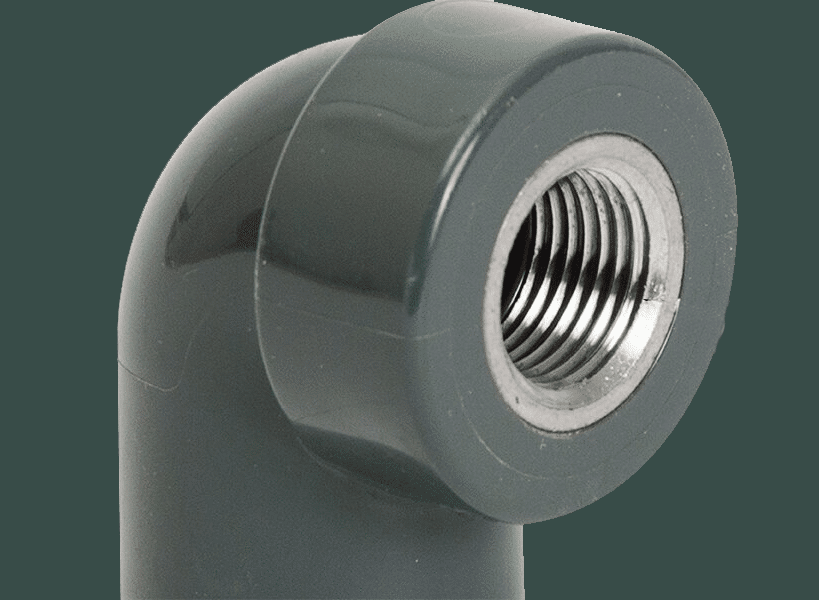

Metal inserts are widely used for threaded fasteners, electrical contacts, and structural reinforcement because they provide high strength and wear resistance. Their rigidity allows them to bond securely with the plastic, creating durable hybrid components.
Plastic inserts are used when engineers need lightweight, corrosion-resistant, or electrically insulating features. They offer compatibility with a wide range of thermoplastics and help reduce overall part weight while maintaining function.
Ceramic inserts are chosen for applications requiring high heat resistance, electrical insulation, or exceptional wear durability. They bond well with molded plastics in specialized components such as sensors, high-temperature housings, and electronic insulators.
Injection Molding Done with Expertise — Not Just Automation
Fast quoting is just the beginning. At Fathom, you get real engineering insight, proactive DFM guidance, and a streamlined path from prototype to full production — all backed by hands-on manufacturing experience.
Insert plastic injection molding is a process where metal, plastic, or other components are placed into a mold before molten plastic is injected, enclosing the insert within the final part. This creates a single, integrated component with improved functionality and strength.
Common inserts include metal fasteners, threaded inserts, electrical contacts, ceramic components, and rigid plastic elements. The choice depends on the required strength, conductivity, or reinforcement.
Inserts can be placed manually by operators or automatically using robotic pick-and-place systems. Locating pins, magnets, or custom mold features hold the insert securely during molding.

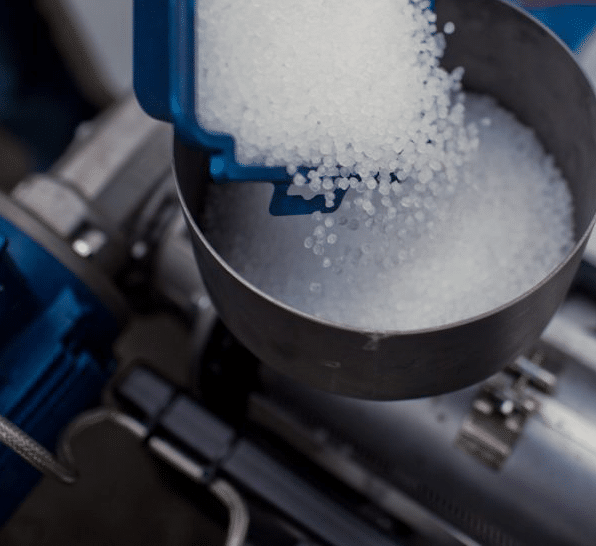

Thermoplastics such as ABS, nylon, polycarbonate, and polypropylene are commonly used. The best material depends on the part’s required mechanical strength, temperature resistance, and chemical compatibility.
Insert molding reduces assembly steps, enhances part strength, and creates more reliable mechanical or electrical connections. It also improves design flexibility by integrating multiple materials into a single component.
Yes, potential downsides include longer cycle times, increased mold complexity, and the risk of insert misalignment. Manual insert placement can also increase labor requirements in high-volume production.
Insert molding is widely used in automotive, medical, electronics, consumer goods, appliance manufacturing, and industrial equipment. Any industry needing strong, durable plastic parts with integrated features can benefit from the process.
Insert-molded components are highly durable because the plastic forms a strong bond around the insert, preventing loosening or failure. With proper materials and mold design, these parts can perform reliably even under high stress or repeated use.
